SEFD20(PIN6+6)
SEFD20(PIN6+6)
SEFD20(PIN6+6)
High power density and high efficiency Multiple-output is available Operating frequency up to 500kHz Custom designs available
Category:SMT type
  • Specification parameters

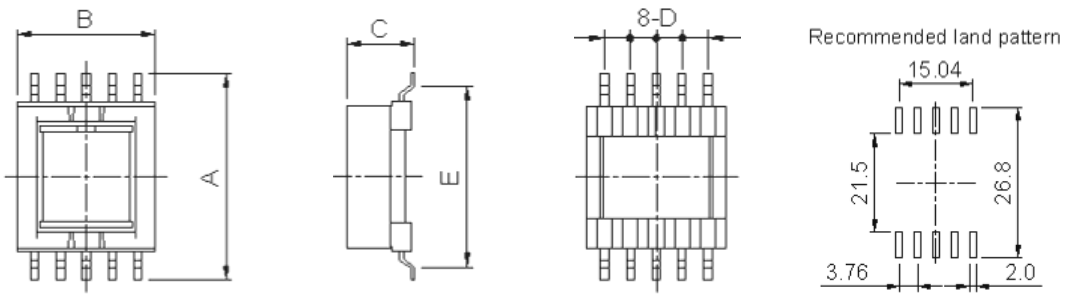

  • SizeA (MAX)B (MAX)C (MAX)D (Nom.)E (Nom.)PIN Size (Nom.)Pins (Optiona)fsw (kHz)Power (W)²
    SEFD2026.022.511.03.7523.11.0x0.45+510020-40
